Features of YG(B)026HC-250 Universal Strength Testing Machine:- The YG(B)026HC-250 Universal Strength Testing Machine used for testing the mechanical properties of various textiles such as stretching, tearing, topping, fixed elongation, fixed load, elasticity, thread slip and stripping.
- The Universal Strength Testing Machine widely used in rubber, plastic, leather, metal, wire, paper, packaging, building materials, petrochemical, electrical, geotechnical materials tensile, compression, bending, bonding, peel, tear, breaking, creep test of force, elongation, deformation test.
- The YG(B)026HC-250 machine has sampling frequency up to 2000 times/second.
- More power motor and advanced servo control drive system, higher reliability.
- Modular design, support online communication, two-way control.
- The equipment comes with a thermal printer, fast output test results.
- The instrument adopts precision grade C5 above ball screw
- Excellent precision guide rail for neutralization and bending
- The seventh generation digital Signal Processing (DSP) control technology based on embedded system
- Powerful, easy to use on the computer control software
- Equipped with an independent color touch screen controller, easy to move or installed on the rack, any appropriate position, display the machine working state, and provide the test control process required positioning, inching, moving and other operation control.

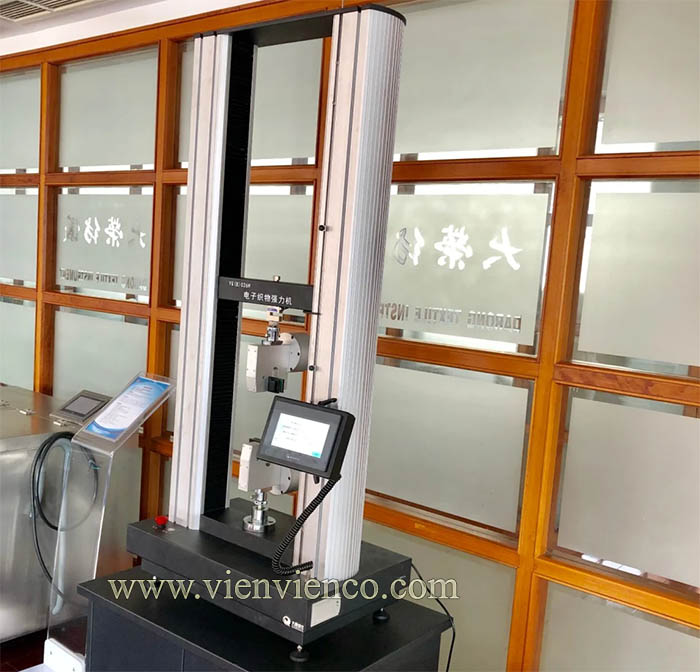

026HC.jpg "YG(B)026HC-250 Universal Strength Testing Machine")
Specifications of YG(B)026HC-250 Universal Strength Testing Machine:
- Working mode: constant speed extension (CRE) principle, microcomputer control, touch screen display, support online communication.
- Comprehensive sampling rate: 2000 times/second
- Measuring range: full range of 1% ~ 100% model
- Model: 50, 100, 250, 500, 1000
- Full range: 500N, 1000N, 2500N, 5000N, 10000N
- Indexing value: 5cN, 0.1N, 0.1N, 0.1N, 1N
- Test accuracy: ≤0.2%F·S
- Clamping mode: pneumatic, manual two
- Stretching speed: (0.01 ~ 1000)mm/min
- Effective range: 800mm
- Elongation resolution: 0.01mm
- Gantry width: 400mm
- Power source: AC220V±10% 50Hz 750W
- Overall size :(750×450×1550)mm
- Weight: 150kg
Delivery method: Nationwide.
- Free in city. HCM
- In the station or express delivery if the customer in outside the province (customers pay shipping costs themselves)
Commitment to customers:
==> Supplying genuine goods (CO / CQ attached), 100% new (with the original belt)
==> Ensure customer's interests when buying products while in warranty, and maintenance for life.
=============== ///=============
