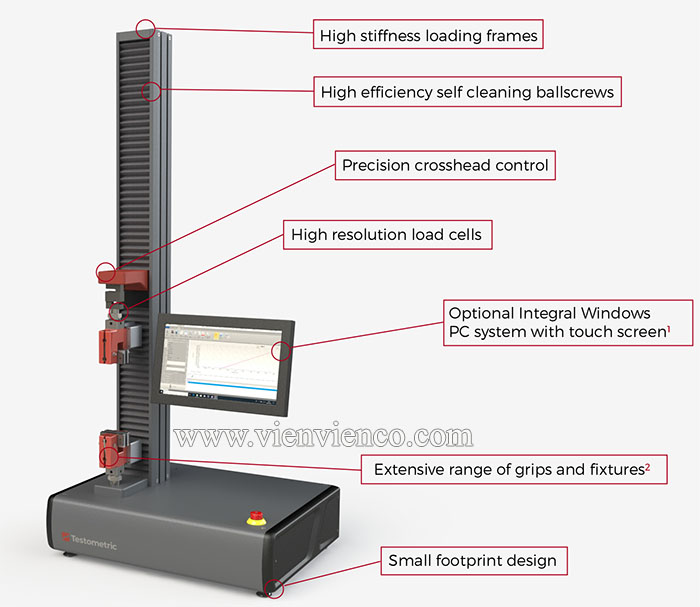

Features of X250 Universal Testing Machine:
- Testometric’s X250 range includes single-column, bench-mounted Universal Testing Machines with precision AC servo drive system and complete computer control. The range offers high-speed operation for efficient testing of materials up to a capacity of 3 kN.
- The fully digital testing system offers high precision control and accuracy while enabling automated computer control of test methods, thereby ensuring operation simplicity.
- The X250 range of testing machines is universally calibrated, with better than Grade 0.5 EN 7500-1, ASTM E-4, DIN 51221, AFNOR A03-501. Minimum range of 0.4% to 100% is provided. Load cells can be automatically identified. The machines offer a resolution of 1 part in 500,000. The system ensures electronic load cell protection.
- The testing machines come with full frame length to a maximum selectable resolution of 0.000001 mm. The X250 range offers an accuracy of +/−0.01 mm. The range comes with absolute, relative and auxiliary modes in mm, inch and percent.
- The X250 universal testing machine range provides best-in-class low-speed performance with speeds down to 0.00001 mm/minute. The range also ensures drive system temperature and current protection.
- The load frame in the X250 range is a rigid frame based on precision linear guidance system and rigid extruded support column. The frame stiffness is 8 kN/mm together with an integrated K factor facility. The testing machines are equipped with a re-circulating ballscrew with bellows. The range also includes total travel trips, electronic limit trips and customer-programmable safety stops.
- Modular electronics system provides quick data transfer to the PC (up to 1000 Hz) through high-speed Ethernet connection. Extensive input options enable the connection of an extensive range of accessories and extensometers through simple plug-in interface modules.
- A wide range of safety features ensures the highest operator safety levels, such as overload/impact detection, E-Stop and programmable extension limits. The X250 range is fully compliant with global safety directives—2006/42/EU Machinery Directive, 2014/35/EU Low Voltage Directive and 2014/30/EU Electromagnetic Compatibility Directive.
Specifications of X250 Universal Testing Machine:
| Model | |
| Force Capacity kN | |
| Accuracy | Better than +/- 0.5% of reading down to 1/1000th of
load cell capacity |
| Crosshead travel mm | |
| Vertical space mm | |
| Position Control Resolution mm | |
| Throat depth (force axis to column) | |
| Minimum Speed mm/min | |
| Maximum Speed mm/min | |
| Speed Accuracy | +/- 0.1% under stable conditions |
| Max force at full speed kN | |
| Max speed at full load mm/min | |
| Data Acquisition Rate (at PC) | 500 Hz as standard (optional 1000 Hz) |
| PC Connection | Ethernet (or USB via adaptor) |
| Machine Configuration | Single-column, bench mounted (optional base cabinet available) |
| Frame Stiffness kN/mm | |
| Weight kg | |
| Operating Temperature °C | 0 to +55 |
| Electrical Supply | 230 V, 1 ph 50/60 Hz (115 V option available) |
| Power kW | |
