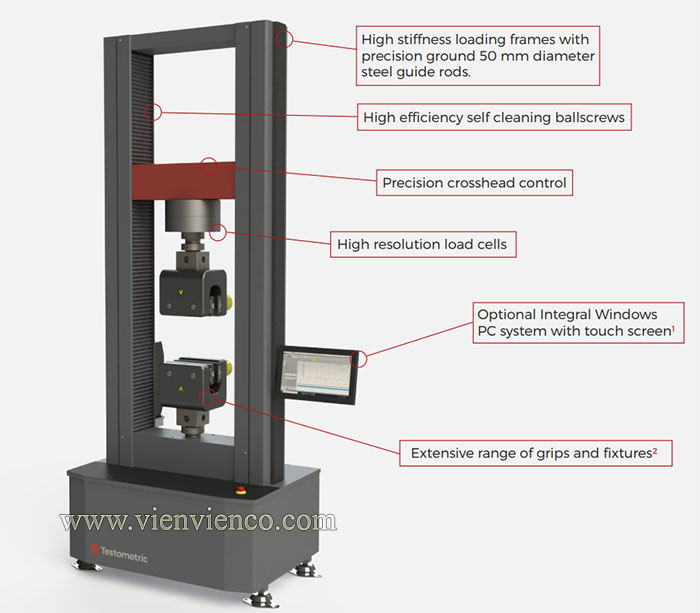

Features of Testometric XFS300 universal testing machine:- Testometric has introduced a twin column, heavy duty, floor standing Universal Testing Machine called XFS300 that is equipped with a precision AC servo drive system and complete computer control. The machine has a high rigidity load frame integrated with an accurate crosshead guidance system for even the most challenging test applications of up to 300 kN.
- The Testometric XFS300 Universal Testing Machine is a completely digital testing system that provides high precision control and accuracy. It enables automated computer control of test techniques to offer ease of operation.
- Extensometers and load cells are automatically detected and calibration parameters can be stored in the device
- High resolution load cells with precisions better than +/−0.5% down to 1/1000th of the capacity of load cells
- The Testometric XFS300 universal testing machine has an 800% overload capability of load cells without any kind of damage
- Software calibration check facility allows immediate verification of machine precision
- Crosshead guidance system ensures a smooth operation and enables accurate alignment
- Pre-loaded, high efficiency, self-cleaning ballscrews allow rapid and quiet testing; equipped with lubricated end bearings that are sealed for life
Specifications of Testometric XFS300 universal testing machine:
| Model | XFS300 |
| Force Capacity kN | 300 |
| Accuracy | Better than +/- 0.5% of reading down to
1/1000th of load cell capacity |
| Crosshead travel mm | 1300 |
| Vertical space mm | 1600 |
| Position Control Resolution mm | 0.00001 |
| Distance between columns mm | 620 |
| Minimum Speed mm/min | 0.00001 |
| Maximum Speed mm/min | 600 |
| Speed Accuracy | +/- 0.1% under stable conditions |
| Max force at full speed kN | 300 |
| Max speed at full load mm/min | 600 |
| Data Acquisition Rate (at PC) | 500 Hz as standard (optional 1000 Hz) |
| PC Connection | Ethernet (or USB via adaptor) |
| Machine Configuration | Twin column, floor standing with diagonally
opposed ball screws and guide rods |
| Frame Stiffness kN/mm | 900 |
| Weight kg | 1840 |
| Operating Temperature °C | 0 to +55 |
| Operating Humidity | 90% relative humidity or less |
| Electrical Supply | 3 Phase 380/400 V |
| Power kW | 4.5 |
Delivery method: Nationwide.
- Free in city. HCM
- In the station or express delivery if the customer in outside the province (customers pay shipping costs themselves)
Commitment to customers:
==> Supplying genuine goods (CO / CQ attached), 100% new (with the original belt)
==> Ensure customer's interests when buying products while in warranty, and maintenance for life.
=============== ///=============
