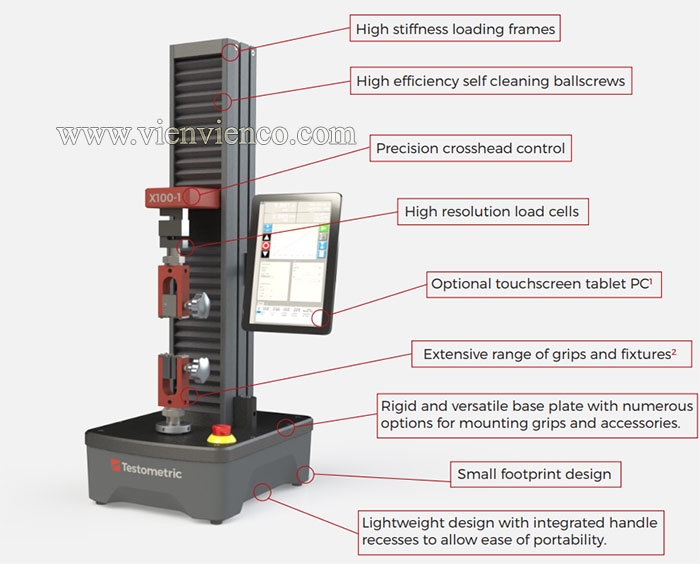

Features of Testometric X100 Universal Testing Machine:
- The Testometric X100 is a small-sized, lightweight Universal Testing Machine that comes with complete computer control and an accurate AC servo drive system.
- The system is best suited for high-volume, low force testing applications like packaging materials or paper. The system is available in standard and long-travel versions ideal for testing high-elongation materials.
- The X100 is a completely digital testing system featuring high precision control and accuracy. The system features automated computer control of test methods, enabling easy operation:
- Automated recognition of load cells and extensometers, with on-device storage of calibration parameters
- Delivers high-resolution load cells with better precision over ±0.5% down to 1/1000th of the load cell capacity
- Features an 800% overload capability of load cells without damage
- The software calibration check facility enables real-time verification of machine accuracy
- Accurate crosshead control through digital AC servo drive and brushless servo motor provides maintenance-free operation and 20,000 pulses/rev positional control
- The system comes with high-efficiency pre-loaded self-cleaning ballscrews for quick and silent testing and is built with sealed-for-life lubricated end bearings
- Delivers accurate alignment and smooth running using the crosshead guidance system
- Loaded with a high-speed data collection system for up to four synchronous channels
- The system is available with a broad range of contacting and non-contacting extensometers, which includes laser and video models
- Compact footprint design ensures the economy of bench space
- The Testometric X100 Universal Testing Machine has features a wide range of grips and fixtures for compression, tension, shear, flexural, peel, product testing, etc.
- Provides overtravel, overload and impact protection
- Additional protection for ballscrews against dust and testing debris ensured through telescopic covers
- Expansion channel for additional devices like micrometers, extensometers, balances, calipers, etc.
- High stiffness loading frames with solid specialized steel crossheads and rigid extruded support columns using T-slots for accessory mounting
Specifications of Testometric X100 Universal Testing Machine:
| Model | |
| Force Capacity kN | |
| Accuracy | Better than +/- 0.5% of reading down to 1/1000th
of load cell capacity |
| Crosshead travel mm | |
| Vertical space mm | |
| Position Control Resolution mm | |
| Minimum Speed mm/min | |
| Maximum Speed mm/min | |
| Speed Accuracy | +/- 0.1% under stable conditions |
| Max force at full speed kN | |
| Max speed at full load mm/min | |
| Data Acquisition Rate (at PC) | 500Hz |
| PC Connection | USB |
| Available load cells | 5N, 10N, 20N, 50N, 100N, 250N, 500N & 1kN |
| Machine Configuration | Single-column, bench mounted |
| Frame Stiffness kN/mm | |
| Weight kg | |
| Operating Temperature °C | -10 to +40 |
| Operating Humidity | +10 to +90% non-condensing |
| Electrical Supply | 230V, 1ph 50/60Hz (115V option available) |
| Power kW | |
