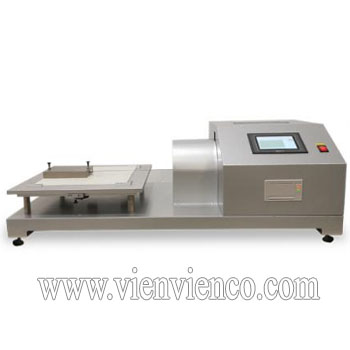

Features of the GT-KB43 Static Slip Tester:
-
The GT-KB43 is specially designed to evaluate the static slip resistance of shoe soles, helping determine the coefficient of friction at the moment the sole begins to move. The device complies with ASTM F609, ensuring high measurement reliability and making it suitable for testing laboratories, QC centers, and footwear manufacturing facilities.
- The machine uses a stable transmission mechanism, with precisely controlled pulling force up to 250 N, offering high resolution and low error for accurate measurement of static friction on various sole materials. It provides flexible testing speeds at 100 mm/min and 400 mm/min, accommodating different testing methods.
- Its robust steel frame minimizes vibration during testing, ensuring stability and repeatability. The standard specimen fixture secures the shoe sole in the correct position, allowing easy operation and quick sample replacement. The machine is equipped with an intuitive control display, simple to operate, with clear data output for user convenience.
- The GT-KB43 is an ideal device for businesses needing to control the slip resistance quality of shoe soles, helping evaluate product safety before shipment or meet customer testing requirements.
Technical Specifications of the GT-KB43 Static Slip Tester:
- Load capacity: 250 N
- Units: kg, N
- Load resolution: 1/1000
- Load accuracy: 0.1 N
- Stroke: 300 mm
- Test speed: 100±10 mm/min or 400±40 mm/min
- Clamp weight: 2700±34 g, L 150 mm, W 100 mm
- Round test slot: Ø12.7 mm
- Rectangular test slot (L×W×D): 70 × 45 × 4 mm
- Power supply: 1∮ AC 220V, 50/60 Hz
- Dimensions (L×W×H): 84 × 27.2 × 33.6 cm
- Weight: 86 kg
