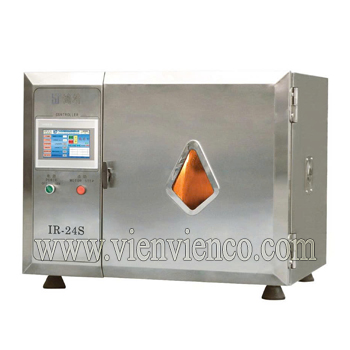

Feature of Dyeing machine IR-24AS-B:
- Dyeing machine IR-24AS-B used for simulating the dyeing process in actual production, even apply for the small-batch production.
- Smart Control System: Equipped with a 7-inch touchscreen and PLC for easy operation.
- Program Storage: IR-24AS-B stores up to 64 programs, with 32 steps per program.
- Precise Temperature Control: Heating rate of 0–5°C/min and maximum temperature of 140°C.
- Efficient Infrared Heating: Uses air as the heating medium for energy savings and environmental friendliness.
- 360° Rotating System: Simulates mechanical actions during actual dyeing and washing processes.
- High Temperature Uniformity: Maintains a temperature difference of approximately 0.5°C between sample cups.
- Water Saving: Low liquor ratio closely simulates actual production conditions and helps achieve accurate color results.
- Easy Maintenance: Screw-lock design allows quick and convenient installation and removal.
- Excellent Reproducibility: Delivers consistent dyeing results for reliable color evaluation and quality control.
Specifications of Dyeing machine IR-24AS-B:
- Temperature detection element: imported PT100 platinum thermal resistance
- Temperature control range: room temperature ~140℃, temperature control accuracy ± 0.1℃
- Rotary speed: 20~56 RPM
- Power supply working range : AC380V 50Hz, maximum power 6.5KW, average power 1.5KW;
- Safety protection, the machine design has three safety protection
- Working environment conditions: working temperature ≤50℃ relative temperature ≤95%.
- 24 pcs stainless steel dyeing pots , all dyeing cups are made of #316L material.
- Machine appearance size : 840× 680× 700mm.
- Machine Weight: 176.5kg
