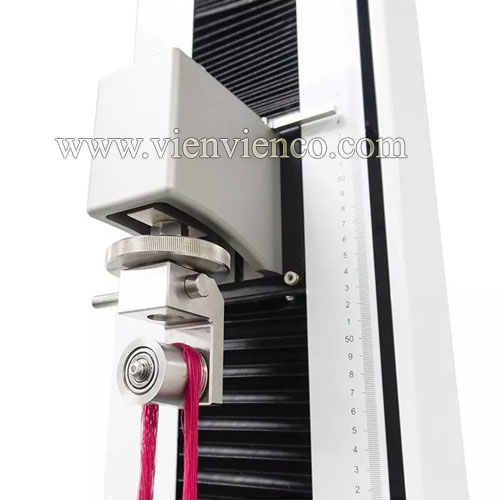

Feature of Tensile Tester TF001:
- The Tensile Tester TF001 is used to test the performance of various materials under tensile, peel, compression, bending, shear, tear, etc.
- It is suitable for textiles, rubber, laminated films, packaging materials, pipes, woven tapes, leather, shoe materials, composite materials, paper, etc. With different fixtures, the tensile tester can be used to test different materials and kinds of tests.
- The Tensile Tester TF001 has High testing accuracy, force accuracy ≤ 1%, high test repeatability
- The screw is high precision ball screw without backlash, which can do high-precision tests, and the surface quenching hardness of the screw is high, so the service life can reach decades.
- Designed for 6 different mechanical tests tensile, compression, bending, tearing, shearing, and peeling tests.
- The Tensile Tester TF001 use 16 test parameters, for a more comprehensive test presentation displacement, maximum force, elongation, stress, maximum stress, bending stress, speed, force width, thickness, etc.
- Stable testing process equipped with a switchable pneumatic tensile fixture, there will be continuous sample tightening force to reduce sample slippage when conducting the test.
- Multiple safety settings we have a built-in intelligent main power supply, a displacement alarm system, an overload and emergency stop system and up and down stroke limiting sensors, which keep your equipment safe and stable.
Specifications of Tensile tester TF001:
- Test capacity: 250kg, 500kg.
- Test level: class 1.
- Max travel: 800 mm (without fixture).
- Travel accuracy: ≤1%.
- Traverse speed: 1mm/min ~ 500mm/min.
- Speed accuracy: ≤1%.
- Test force range: 0.2%~100%FS.
- Force accuracy: ≤1%.
- Power: 220 V 50Hz 3A 400W 110 V 60Hz 5A 400W.
- Weight: Net weight: 85kg, Packed weight: 140kg.
- Dimensions: Machine: 680x500x1450 mm, Packed: 780x600x1590 mm.
Delivery method: Nationwide.
- Free in city. HCM
- In the station or express delivery if the customer in outside the province (customers pay shipping costs themselves)
Commitment to customers:
==> Supplying genuine goods (CO / CQ attached), 100% new (with the original belt)
==> Ensure customer's interests when buying products while in warranty, and maintenance for life.
=============== ///=============
