  4. Taber H-22 Grinding Wheel
Product
    Taber H-22 Grinding Wheel

Taber H-22 Grinding Wheel

  • Product Category: Taber Abrading Wheels
  • Manufacturer: Taber
  • Code:

    H-22

  • Price: Contact us
    • Warranty 12 months
    • Delivery
    • Caring thoughtful
    • 24/7 support
    • Standard: DIN-53754/53799/53109, ASTM-D3884, ISO5470-1
Specification of Taber H-22 Grinding Wheel:
  1. Taber H-22 Grinding Wheel, 1 pair / box, divided into left and right grinding wheels, respectively marked as " LEFT", "RIGHT", Packed in a special plastic box
  2. Type: Calibrade
  3. Model: H-22
  4. Brand: Taber
  5. Origin: USA
Feature of Taber H-22 Grinding Wheel:
The H-22 vitrified wheel produces an extreme abrasive action.  It has been used to test rubber, linoleum, leather, deep pile fabrics (such as automobile floor coverings) and concrete.


Delivery method: Nationwide.
     - Free in city. HCM
     - In the station or express delivery if the customer in outside the province (customers pay shipping costs themselves)
Commitment to customers:
==> Supplying genuine goods (CO / CQ attached), 100% new (with the original belt)
==> Ensure customer's interests when buying products while in warranty, and maintenance for life.
=============== ///=============

VIEN VIEN SERVICE TRADING CO., LTD
Address: 60B Road 359, Phuoc Long B Ward, Thu Duc City, Ho Chi Minh City, VN
Tell:  (+84) 0 348580234  -  (+84) 0 763031275
Email : sales@vienvienco.com

Product Other

Price: Contact us

Taber CS-0 Grinding Wheel, A resilient wheel containing no abrasive particles.  Intended for use when a very mild abrasive action is required, or for wet tests such as determining the relative abrasion of dental pastes, cleaning powders, or similar compounds.  Adhesive sandpaper strips can be adhered to the periphery of the CS-0 wheel to evaluate the abrasion resistance of high-pressure decorative laminates and other products.  CS-0 wheels have an expiration and should not be used after the date printed on the label.

100% Genuine

Price: Contact us

Taber S-35 Grinding Wheel, Manufactured out of tungsten carbide, the periphery of the S-35 consists of sharp helical teeth (1 mm pitch x 45° spiral pitch angle).  The teeth combine both a cutting and tearing action, which provides a very severe abrasion.  Intended for use only on resilient materials such as rubber, linoleum, and leather.  S-35 wheels may be cleaned using a soft brass bristle brush.

100% Genuine

Price: Contact us

Taber S-42 Sandpaper Strip Grinding Wheel, An open coat sandpaper that is cut to 12.7mm x 160 mm strips and includes a pressure sensitive adhesive to attach the strip to the periphery of CS-0 (S-32) resilient wheels.  The S-42 consists of a very fine aluminum oxide grit, graded as 180 ANSI-CAMI which has an average particle size that is approximately 78µm (0.00304 inches).  The paper is an "A" weight which satisfies the paper grammage requirement of 70 - 100 g/m².  To maintain the rate of abrasion, the sandpaper strips must be changed after a defined number of test cycles (typically 200 or 500).  Applications include high pressure decorative laminates, wood flooring, plastics, furniture surfaces, paints and varnishes.

100% Genuine

Price: Contact us

Features of Taber S-11 sandpaper:
The usage time of Taber S-11 sandpaper is only 1 time of fine-tuning. Regardless of whether the disc has been used for 25 or 50 cycles, the regrind disc should be discarded. Re-grinding with a used disc may change the wear factor of the wheel faces and invalidate your test results.

100% Genuine

Price: Contact us

Features and parameters of Taber ST-11 grinding wheel:
Tabe ST-11 grinding wheel is used to resurface the wheel. The ST-11 grinding wheel is a 4" diameter x 1/4" thick vitrified product with a 1/4" center hole and has both sides manufactured to a 180 grit grit (usually specified as "good"). Original ST -11 refinished stones are duplex stones with one side 180 grit and the opposite side 80 grit.

100% Genuine

Price: Contact us

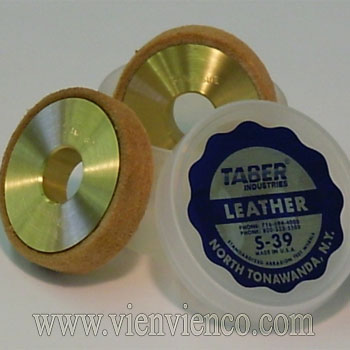

Taber S-39 Grinding Wheel, This wheel is used in conjunction with the Grit Feeder to conduct three-body abrasion tests, and includes a leather strip that has been adhered to the exterior of a brass hub.

100% Genuine

Price: Contact us

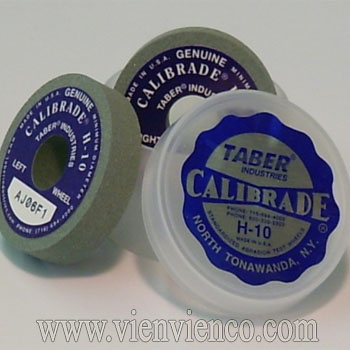

Taber H-10 Grinding Wheel, A non-resilient, vitrified wheel designed to evaluate steel and ferrous alloys for resistance to abrasion.  It has also been used to test the effect of hardening and tempering treatment on steel and other ferrous materials. The H-10 vitrified wheel produces harsh abrasive action.

100% Genuine

Price: Contact us

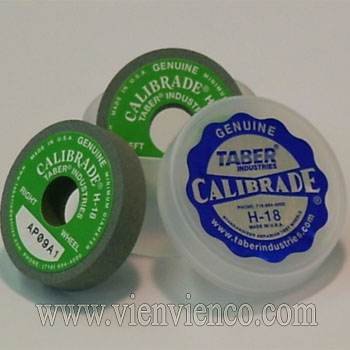

Taber H-18 Grinding Wheel, This commonly used non-resilient wheel provides a severe abrasive action.  It is most often used to evaluate resilient materials such as rubber (non-tacky), certain woven textile fabrics, coated fabrics, and flexible plastic sheets.

100% Genuine

Price: Contact us

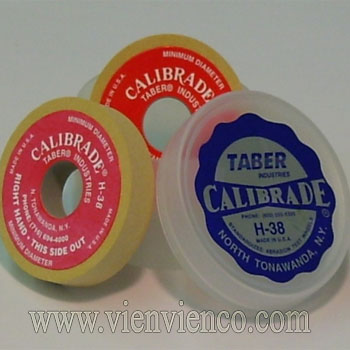

Taber H-38 Grinding Wheel, A non-resilient, vitrified abrading wheel comprised of fine abrasive particles that produces medium abrasive action.  Designed to operate with 250 or 500 gram loads, the principal use of this wheel is to test woven and non-woven fabrics.  Must be refaced using the Taber Wheel Refacer and multi-point diamond tool.

100% Genuine
